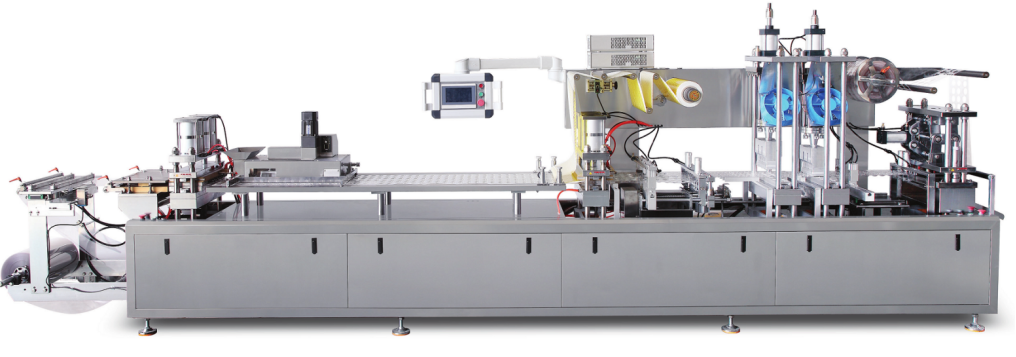

DPP-420 Electric Blister Packing Machine

DPP-420 Electric Blister Packing Machine

Blister Packing Machine for Toy Egg
With CE Certificate and GMP Compliant

Brand:

D-TOP

Products Description

Servo motor traction drive (precision screw traction), good synchronization, stroke length can be set in man-machine interface.
Eye mark system is adopted, and the printing pattern background is uniform,beautiful.
Suitable for aluminum-plastic (thermoforming),aluminum-aluminum (cold forming), only need to replace the mold and feeder of aluminum-aluminum packaging.

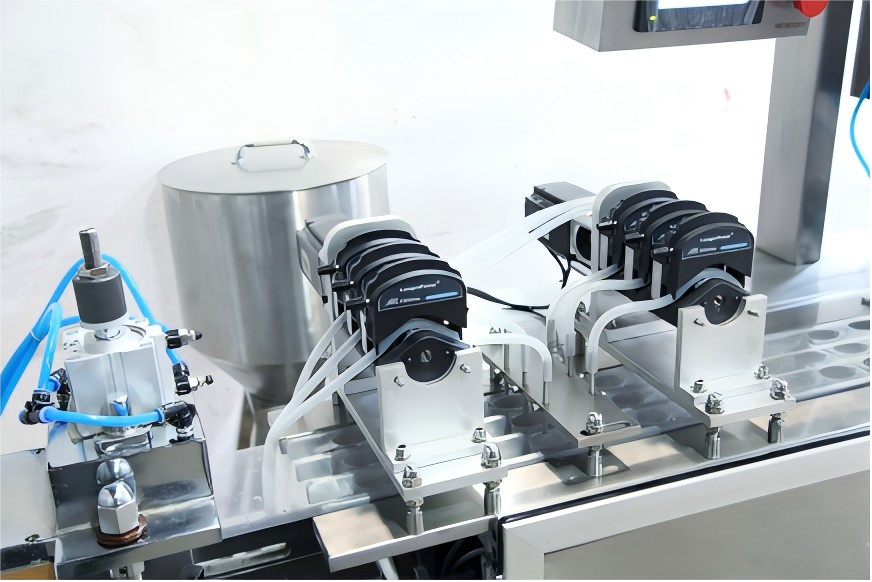

Various types of feeders solve the problem of irregular shape product packaging.
All stations adopt gear mandrel positioning mode, including forming, heat sealing, batch number imprinting, tear off line imprinting、cutting and other processes. By rotating the handwheel, each station can move freely in the mandrel, which is easy to adjust and has high precision.
The new mold positioning device speeds up the mold replacement requirements.


Cutting frequency (times/min)		6-35
Max forming area and depth (mm)		400×180×26 (Customizable to deeper specifications)
Travel Range (mm)		40-180 (can be extended to 180mm according to user requirements)
Air Pressure (Mpa)		0.4-0.6
Air Supply		≥0.3m³/min
Total Power		380V/220V 50Hz 9.7kw
Main motor power (kW)		2.2
PVC Sheet (mm)		0.15-0.5×420
PTP Aluminum Foil (mm)		0.02-0.035×420
Dialysis Paper (mm)		50-100g×420
Mold cooling		Tap or circulating water
Overall Dimensions (mm)		4300×820×1600 (L×W×H)
Weight (kg)		2500

Detail Shot

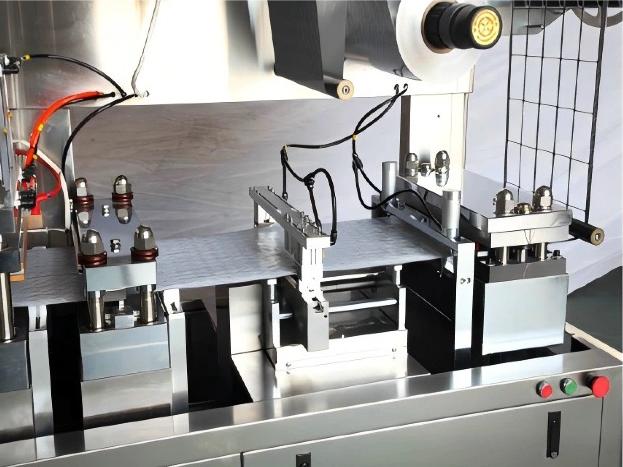

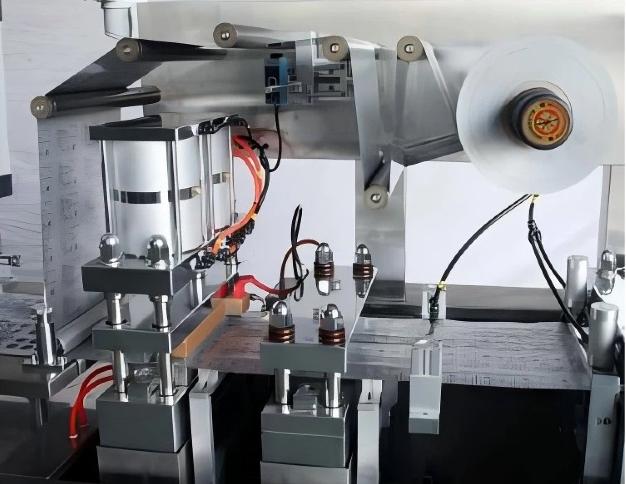

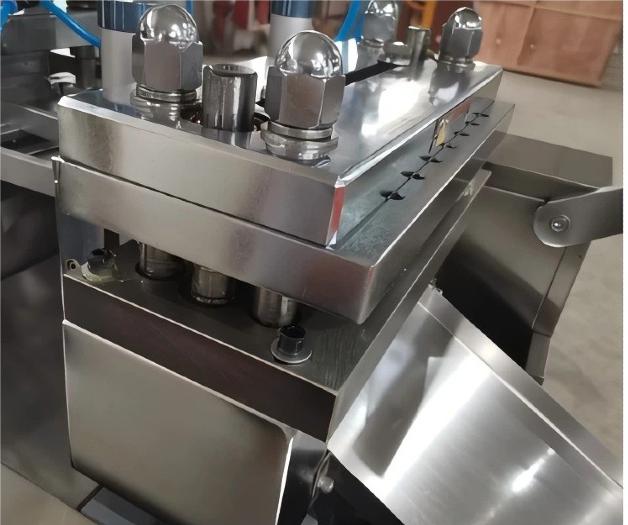

	Forming station The mold design is accurate, andthe complex molding can becompleted at one time. The rapidmold changing device can meet theproduction requirements of multiplespecifications.

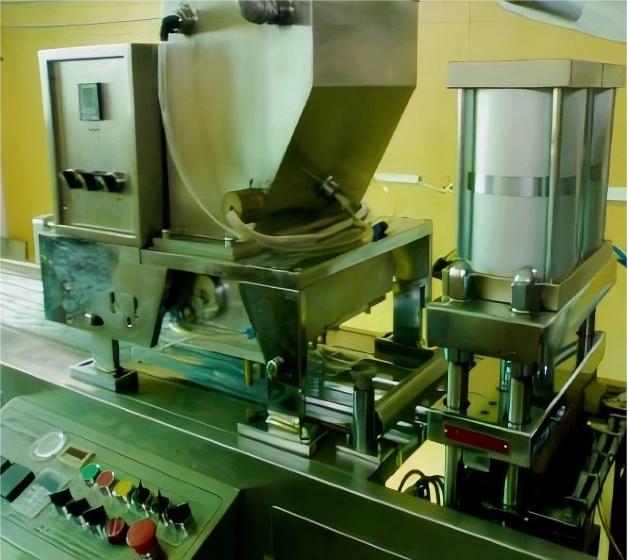

Chocolate Feeder Use vibrating plate or servo pushrod, etc. to ensure that thematerials accurately fall into theegg-shaped blister, and preventmaterial jamming, missing loadingor deviation.

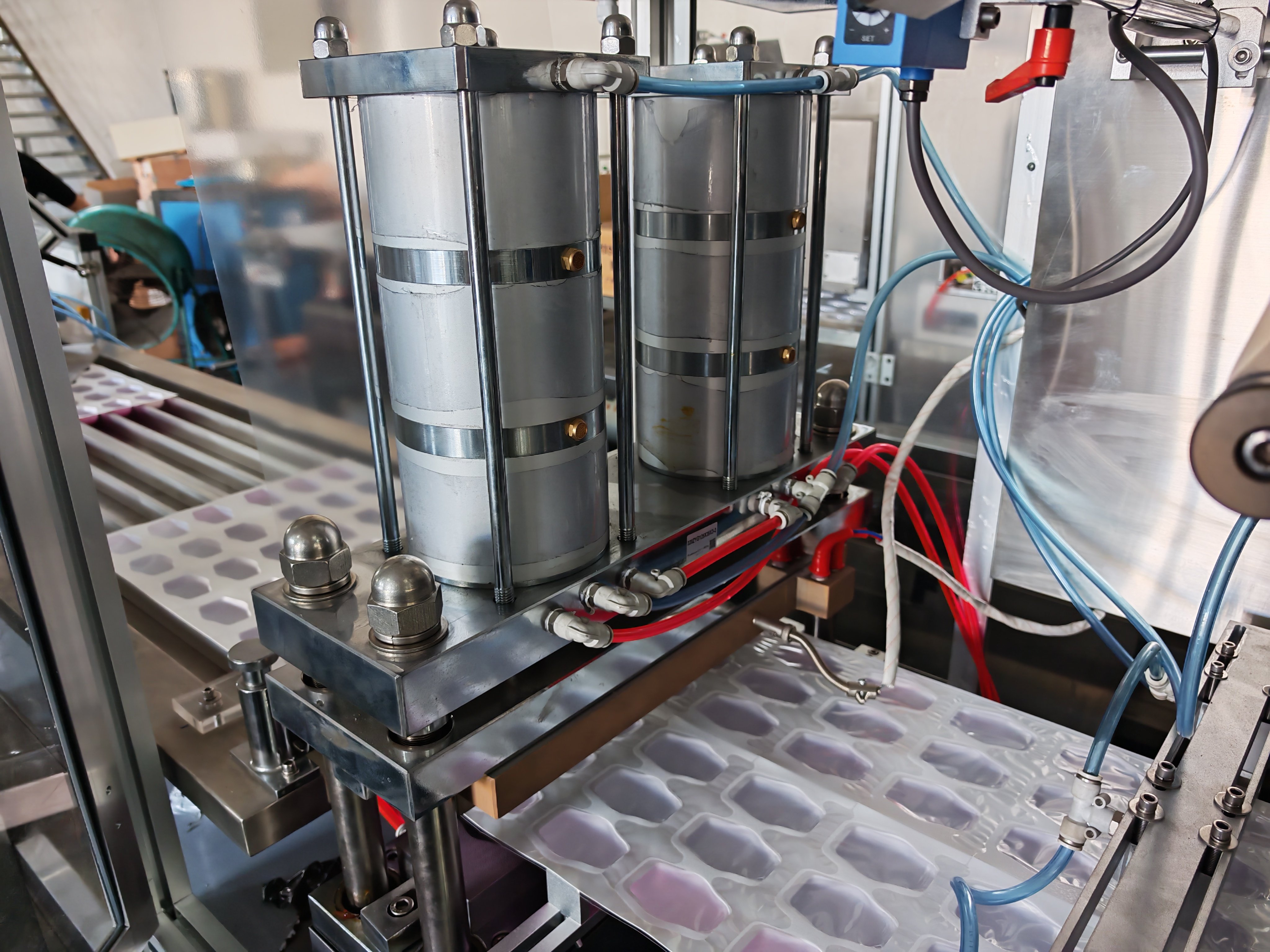

	Sealing station Independent temperature controlsystem is adopted, which canadjust the sealing temperature fordifferent materials to ensure firmsealing and no air leakage.
Traction station Adopt servo motor drivingtechnology, higher accuracy, fasterresponse, adapt to the adjustmentrequirements of different sizes,effectively reduce material waste.

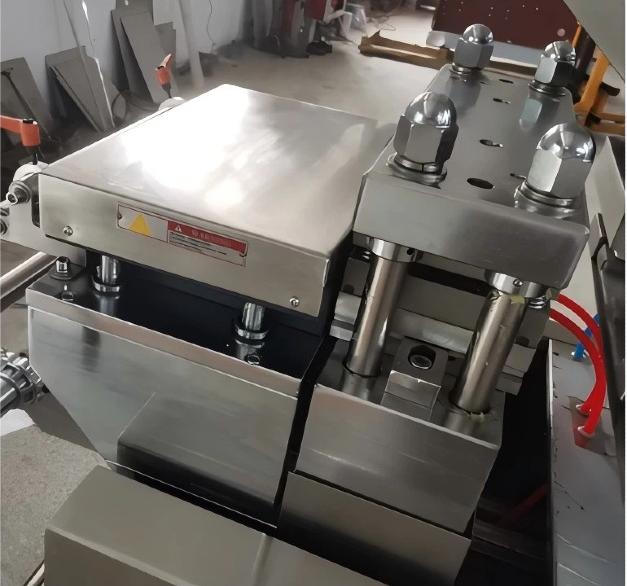

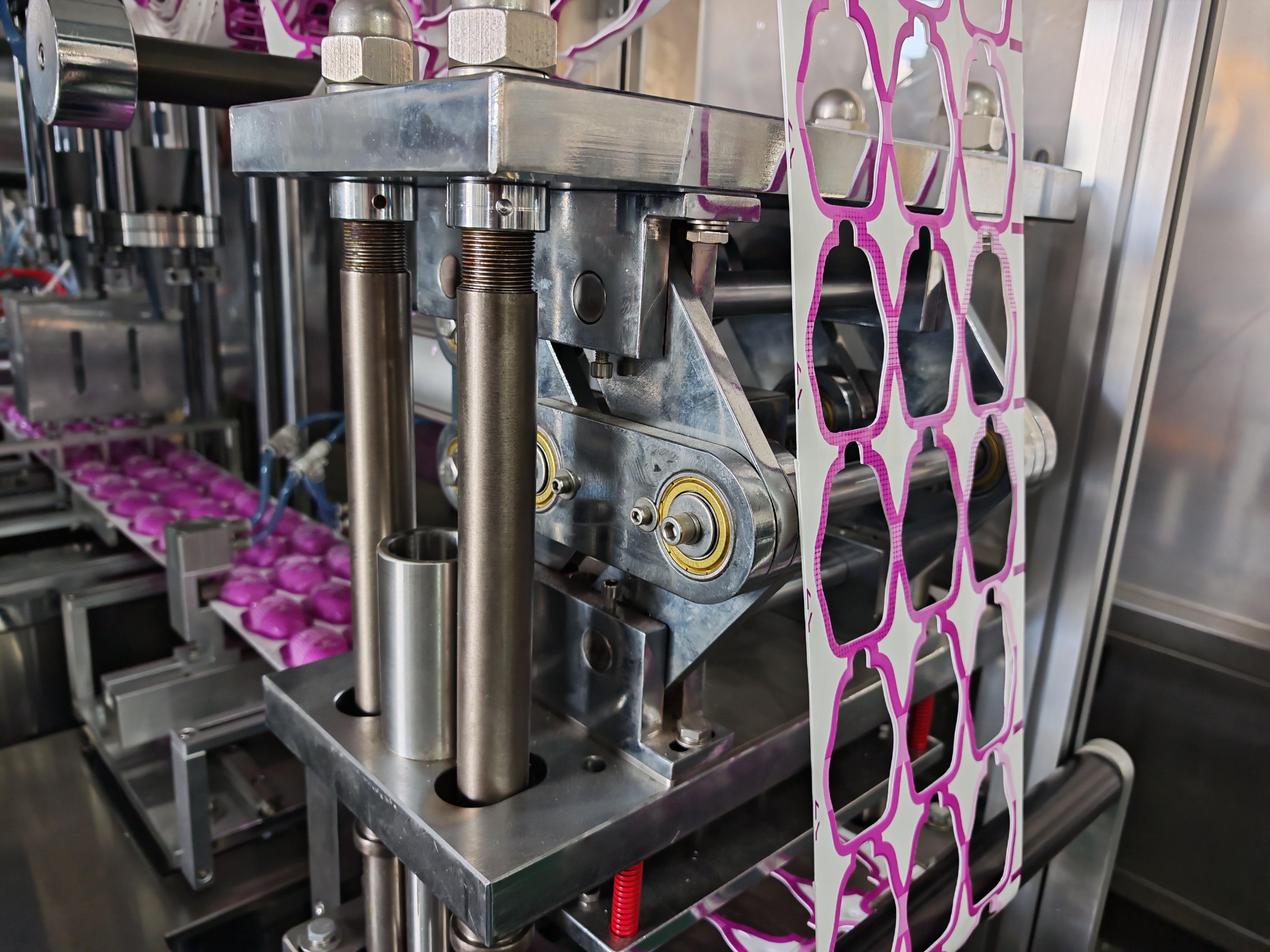

	Cutting station Longitudinal and transversepunching, precise mold positioning,smooth and flawless cuts withoutburrs, improving the yield rate andappearance quality of the finishedproducts.

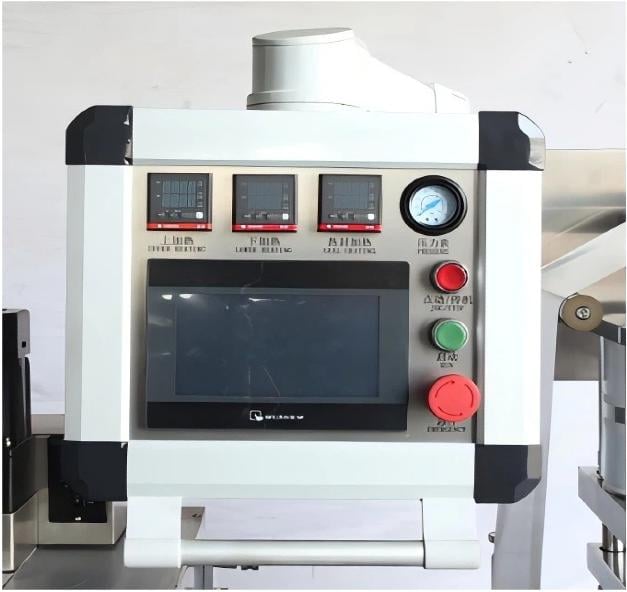

TOUCH SCREEN+PLC It adopts PLC programmable controland touch screen human-machineinterface, which is easy to operate,stable and reliable.

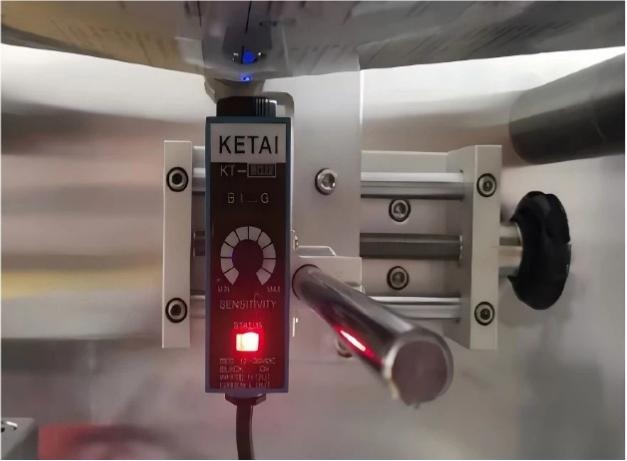

	Cursor detection device The cursor detection systemcooperates with the servo motor,so that the sealed layout pattern isaligned uniformly, clear andbeautiful.

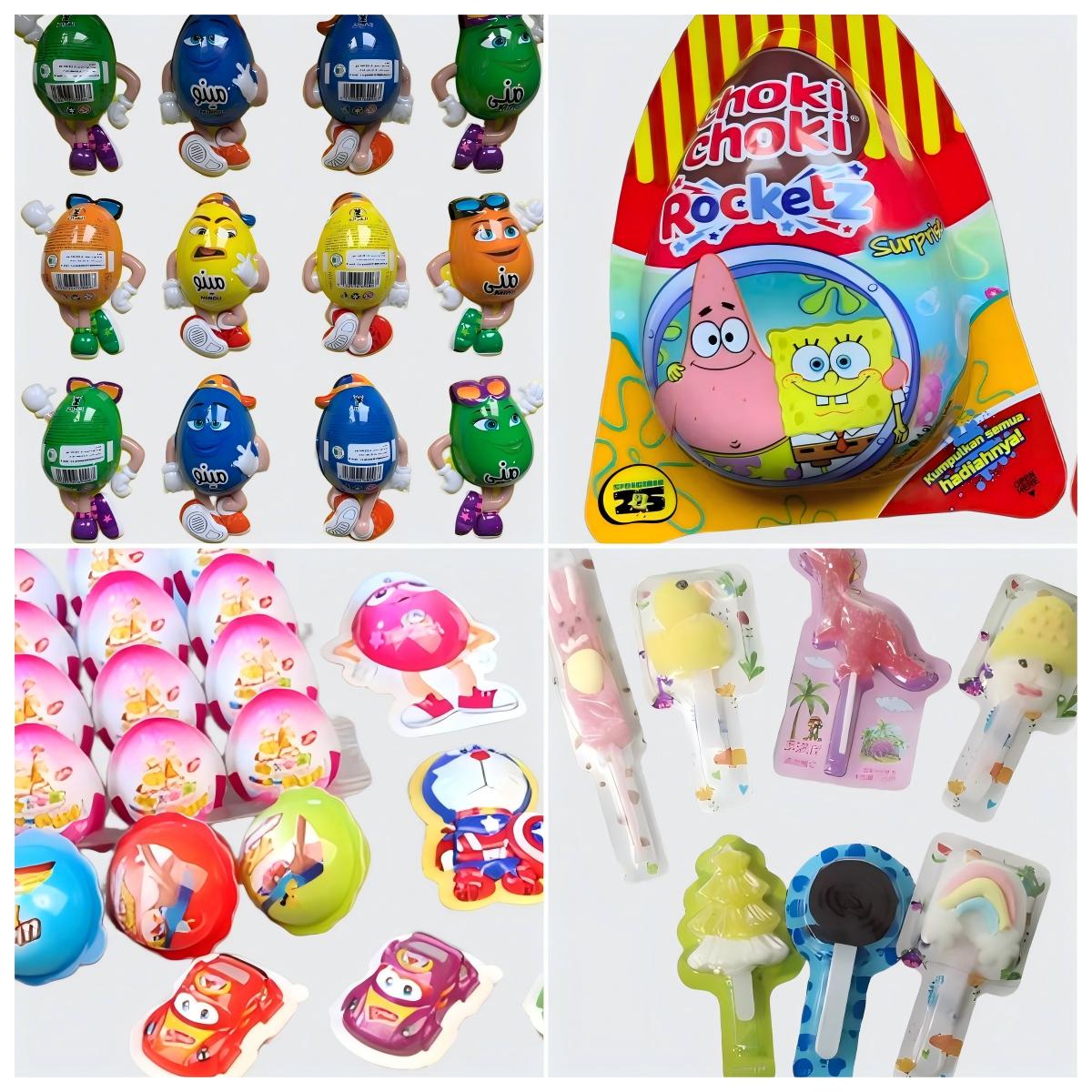

Application


About The Supplier

NANJING D-TOP PHARMATECH CO.,LTD is not just a packaging manufacturer, but also your trusted end-to-end packaging solution partner. We provide one-stop services including pre-sales consultation, customized solutions, and worker training. We specialize in tablet and capsule counting machine, blister packing machine and filling production lines, integrating R&D, sales, and service. With over ten years of professional experience, we have delivered stable and efficient packaging equipment to thousands of customers worldwide. From raw material inspection to the precision machining of core components, we implement dozens of quality control checkpoints to ensure that every production line is delivered in optimal performance condition, effectively extending the equipment's lifespan. Based on this, we have established a modern quality management system that strictly adheres to international standards, deeply integrating process control with customer service. We warmly welcome domestic and international customers to visit and discuss cooperation—let us join hands to create a broader future.Please contact us.
